Polhemus
Wireless 6DOF Electromagnetic Tracker
Freedom of movement without compromise: precise 6DOF tracking, wireless and without visual connection

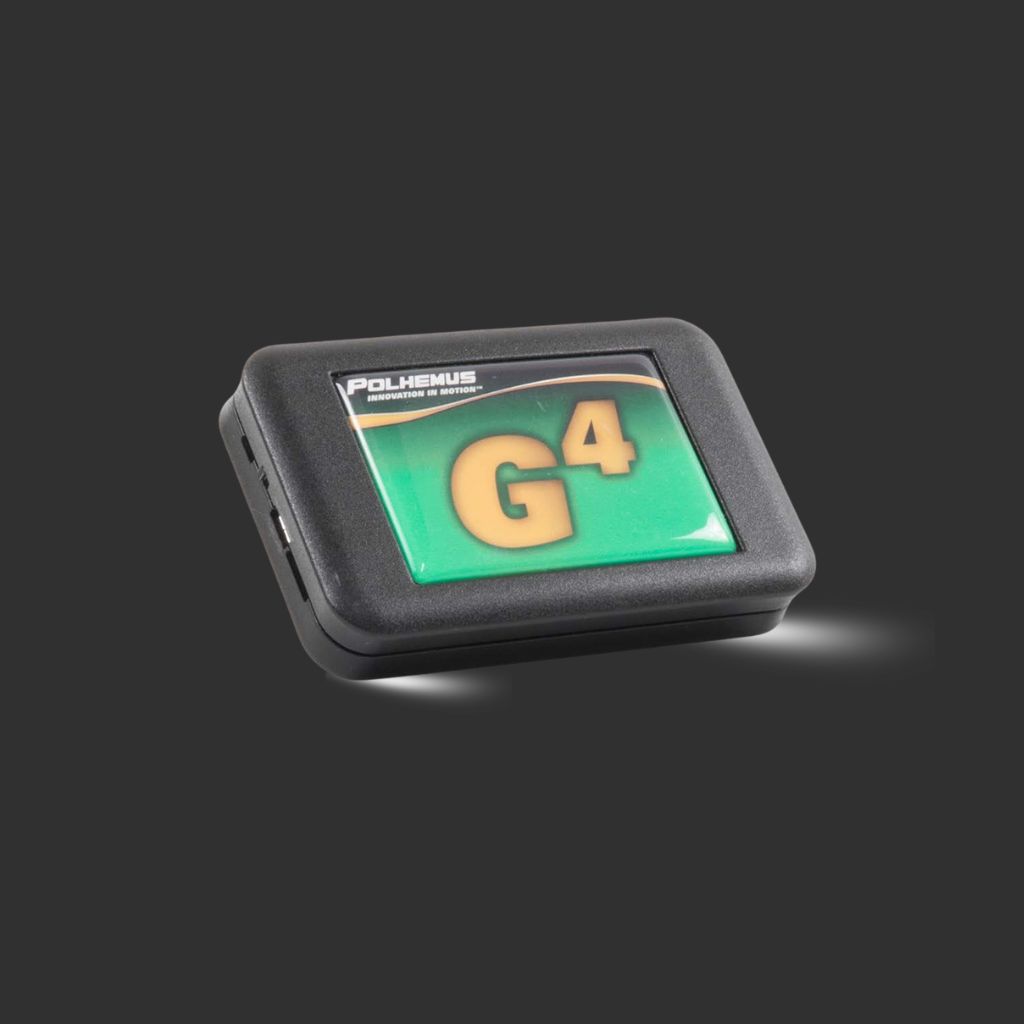

The G4 system is a compact, wireless tracker that allows unrestricted movement. It uses the powerful electromagnetic AC technology to deliver high-quality 6DOF real-time data without the complications of hybrid technologies or the need for visual connection. The data from the sensors are transmitted directly to the PC via high-frequency connections (RF), which enables a seamless data stream without drift. G4 is ideal for innovative solutions in the areas of training and simulation, rehabilitation, physiotherapy, biomechanics, sports analysis, and virtual or augmented reality.
Core Benefits
What makes it special:
The 6DOF Compact, Three-Sensor Wireless Tracker for Complete Freedom of Movement
The G4 system stands out with its unique wireless functionality. It offers the flexibility to move freely and unhindered without compromising on precision. Wireless RF communication and long battery life make it the perfect choice for applications where mobility is critical.
Key Features/Tech Specs
Accessories and options at a glance
Our range of sensors offers precise tracking solutions for a wide range of applications. The Micro Sensor 1.8T™ With 1.8mm diameter and under one gram weight as well as the versatile Standard Sensor (RX2) With integrated attachment points, the basis of our product line.
For special requirements we offer the Flat-Sided Mini (RX1-C) with streamlined design and Teardrop Mini (RX1-D) for finger tracking. The Earless RX2 Suitable for embedded applications, Flying Lead RX2 For own switch integration.
The Viper™ FT Sensors are specially developed for the Viper system. All sensors are compatible with Liberty™, Patriot™, G4™ and FastRak® systems.
Our transmitter series offers optimized solutions for different tracking ranges and application areas. The Short Ranger (TX1) is a miniature source for precise tracking in small areas from 1 to 24 inches, ideal for detailed close-range applications.
The 2" source (TX2) Serves as our standard solution, which comes with most Polhemus systems and covers a reliable range of 3 to 60 inches. For advanced applications, the 4" source (TX4) An impressive range of 1 to 7 feet and is often used in biomechanics and golf swing analysis.
Thanks to identical mounting holes to the TX2, the TX4 is easy to replace and enables flexible system configurations depending on the project requirements.
The 3" and 8" stylus options Transform FastRak®, Liberty™ and Patriot™ systems into precise free-form digitizers for CAD, graphics and custom applications. The hand/foot switch Allows the smooth capture of data points without unwanted movement of the stylus tip.
